Lid balers – PCV range

Thanks to their versatility and their fast compacting of metallic waste, Danieli Centro Recycling lid balers are particularly suitable for processing both ferrous and non-ferrous scrap metal requiring high densification and a high production capacity.

PCV Lid balers
A range specific to the processing of bulky, voluminous metallic waste.
Machine installation especially well-suited to scrap yards.
Robust baling press design for continuous, heavy-duty operation, whatever the product to be processed: steel, aluminium, copper, stainless steel, etc.
Complete turnkey supply of a series of equipment to satisfy customer requirements: feed hopper, ramp or bale outfeed conveyor.
Optimisation of bale handling, storage, and transport costs: high densification, uniform volumes (bales of equal length).
Improved bale smelting performance.
Feeding with a grab.
Shearing of bulky metallic waste by precompression ram cover closing.
Hydraulic cylinders automatically lock cover in position.
Automatic and discontinuous compacting cycle.
Bale ejection via ramp or conveyors.
grooves in the abrasion-proof wear plates
securing of maintenance areas
controlled used of the hydraulic system
Ergonomics
  • Implementation suitable for scrapyards requirements
  • Very large loading volume
  • Human/machine interface via touch-screen display
Working life
  • Long, oversized ram guidance
  • Large precompression cover with blades to shear bulky waste
  • Interior of the compression chamber is sprayed with an appropriate lubricant according to the material being processed

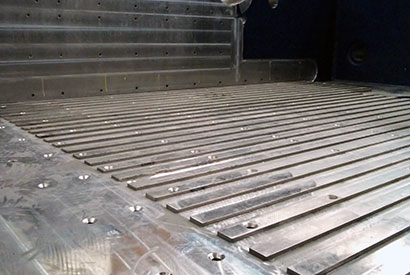

  • Appropriate grooves in the abrasion-proof wear plates according to the product being processed
Maintenance
  • Centralised and protected maintenance
  • Easily interchangeable wear plates
  • Easy cover and ram removal without disassembling the compression cylinders
  • Automatic ram lubrication
  • GSM modem or telephone line for telediagnosis

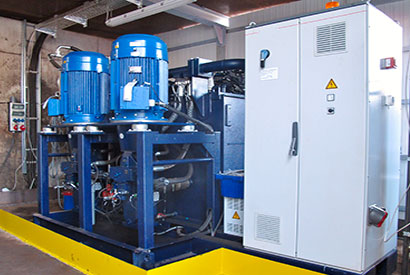

Hydraulic power unit
  • Electric version compliant with latest European directives
  • Industrial hydraulic pumps
  • Lower energy costs through controlled use of the hydraulic system

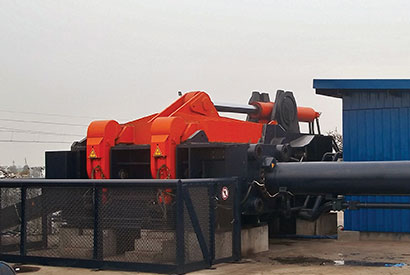

Safety
  • In compliance with the machine directive 2006/42/EC
  • Limitation of bodily risks by protection and covering of risk areas (moving rams)
  • Securing of maintenance areas
  • Hydraulic hose whiplash protection
Available equipment
  • Different systems or technologies to feed the press: fixed hopper, loading bucket, etc.
  • Different systems or technologies to eject the bales: conveyor, ramp, non-return system, loading platform, automatic or manual bale routing
